Rail Mount Cable Dropout

This side mounted cable drop out offers ultimate support for the high capacity data center cable runs while not compromising the cable tray itself. By bolting onto the universal rail system of the Mega Snake, the side mount unit allows for simple cable egress directly off the side of the tray without having to make any cuts or modifications preserving the strength and integrity of the tray. Ideally suited for supporting and protecting copper and fiber optic cables as they enter and exit the tray. Available in 12″, 18″, and 24″ sizes, the cable dropout comes in standard galvanized, white or black powder coat or in a custom color to match any data center. Drop out bolts directly to the universal rail system of the 801 Series Mega Snake which allows for easy moves, adds or changes when needed. Provides a smooth surface for horizontal cable direction changes with a 180° bend which ensures cables do not have any potential pinch points or kinks.

Part Number Description
CM 708-75-11744 Rail Mount Cable Dropout for 12" Mega Snake Tray
CM 708-75-11747 Rail Mount Cable Dropout for 18" Mega Snake Tray
CM 708-75-11741 Rail Mount Cable Dropout for 24" Mega Snake Tray

Mega Snake Under Tray Pathway System

Unique applications require unique solutions. In hospital environments, there is a need for mission critical cable pathways apart from the standard data cabling infrastructure, typically nurse call, alarm and security cabling. This under tray add on accessory provides up to 8 separate color coded cable pathways, simple to install and available with customer specific color coding.

Part Number Description
CM 801-18-ACSM Auxiliary Conveyance System Module

101 Series Snake Tray® Intersections

Tray configurations for the 101 Intersection components

CM 0303 for CM 101-3-8
CM 0306 for CM 101-3-8 and CM 101-6-8
CM 0312 for CM 101-3-8 and CM 101-12-8
CM 0606 for CM 101-6-8
CM 0612 for CM 101-6-8 and CM 101-12-8
CM 1212 for CM 101-12-8
CM 1818 for CM 101-18-8

AVAILABLE FOR LS AND RKS MODELS

Part Number Part Size
CM 0303 8" x 8"
CM 0306 8" x 11"
CM 0312 8" x 17"
CM 0606 11" x 11"
CM 0612 11" x 17"
CM 1212 17" x 17"
CM 1818 23" x 23"

Allows for the construction of both TEE and 4-way crossing intersections when using the 101 series trays.

Turning Fence

Part Number
TF-101/ TF-101LS

Used when creating 101 series tray horizontal intersections. Creates a consistent smooth transition surface.

Universal Tray Connector Bolt

Part Number
CB-10

Provides both a mechanical and a bonded electrical connection when joining tray sections to one another.

• One CB-10 required per connection.

Universal Inline Connector Bolt

Part Number
CB-12

Provides both a mechanical and bonded electrical connection when joining tray sections to one another.

• One CB-12 required per connection
• Set screws max torque = 230 in-lbs

Double Snake Tray Intersection

Part Number Part Size
CM 425D 12" x 12"
CM 5D 14" x 14"

Installed as either a TEE or 4-way crossing intersection component for the Double Snake 201 series tray.

Intersection/TEE for Double Snake Tray with Single Snake Cross

Part Number Part Size
CM 425D/425 7 ½" x 20"

Installed as either a TEE or 4-way crossing intersection component for a Double Snake and a Single Snake crossing.

WYE Connection

Part Number Part Size
CM 201-Y 5" x 6"

Used to create a WYE intersection or split Double Snake into two (2) separate cable paths at a terminal end.

201 to 501 Series Connection Adapter

Part Number Part Size
CM 201/501T 5 ¼" x 5 ¼"

Used to adapt 201 series to 501 series trays.

Universal TEE Intersection for 201, 401, 454 and 501 Series

Part Number Part Size
CM 0303T 5 ½" x 5 ½"

Installed as TEE component for the Snake 201, 401, 454 and 501 series trays.

Universal Intersection for 201, 401 and 454 Series

Part Number Part Size
CM 0303H 5 ½" x 5 ½"

Installed as 4-way crossing intersection component for the 201, 401 and 454 series trays.

Rack Mount Bracket for 201 Series

Part Number
RBN-201
RBN-201-90

Used to mount single pocket 201 series Snake Tray to the tops of standard equipment racks via a built-in clamping feature. No additional hardware required. RBN-201-90 mounts to the tray perpendicularly. Clamp to attach to tray included.

Rack Mount Bracket for 201 Series Double

Part Number
RBN-201 D

Used to mount double pocket 201 series Double Snake to the tops of standard racks via a built-in clamping feature. No additional hardware required.

Beam Clamp for 3/8″ Threaded Rod for 201 and 454 Series

Part Number
BC-201-A

Used to attach 3/8"-16 threaded rod to a beam.

Pedestal Mount Bracket for 201 Series

Part Number
ST-201

Used to attach single pocket 201 series tray to the floor pedestals utilized in the construction of raised access floors.

Pedestal Mount Bracket for 201 Series Double

Part Number
ST-201-D
ST-201-5D

Used to attach double pocket 201 series Double Snake to the floor pedestals utilized in the construction of raised access floors.

Wall Mount Bracket for 201 Series Single

Part Number
WBN-201

Used to attach single pocket 201 series tray to walls and other vertical surfaces. Clamp to attach to tray included.

Wall Mount Bracket for 201 Series Double

Part Number
WBN-201D
WBN-201-5D

Used to attach double pocket 201 series double tray to walls and other vertical surfaces. Clamp to attach to tray included.

Cabinet Mount Bracket for 201 Series Single

Part Number
CBN-201
CBN-201-90

Used to attach single pocket 201 series tray to the tops of equipment cabinets. Clamp to attach to tray included.

Cabinet Mount Bracket for 201 Series Double

Part Number
CBN-201D
CBN-2015D

Used to mount double pocket 201 series double tray to the tops of equipment cabinets. Clamp to attach to tray included.

Cable Drop-Out Waterfall for 201, 401 and 501 Series

Part Number Part Size
TO-2 2" W
TO-3 3" W
TO-425 4 ¼" W
TO-5 5" W
TO-6 6" W

Provides a smooth transition for cables when exiting the tray. Maintains a consistent 4" radius eliminating kinked cables. Easily attaches to tray with cable ties.

Seismic Bracing Kits with Crimp Tool & Cutter

Part Number Part Size Description
CM201/801-SBK1-XX Kit for Anchoring Snake Tray and Mega Snake in Concrete Ceilings
CM 201/801-SBK-J-XX Kit for Anchoring Snake Tray and Mega Snake around Joists
CM 201/801-SBK-L-XX Kit for Anchoring Snake Tray and Mega Snake with Lag Bolts into Wood Beams
CM 201/801-SB-CT Crimp Tool
CM 201/801-SB-CU Cutter

501 Series Snake Tray® Intersections

Installed as “T” component for the Snake 201 and 501 series trays.

CM 0303T – 5 ½” x 5 ½”

OTHER CONFIGURATIONS AVAILABLE

Part Number Part Size
CM 0303 8" x 8"
CM 0306 8" x 11"
CM 0312 8" x 17"
CM 0606 11" x 11"
CM 0612 11" x 17"
CM 1212 17" x 17"
CM 1818 23" x 23"

Allows for the construction of both "T" and 4-way crossing intersections when using the 101 series trays.

I-Beam Clamp

Part Number Part Size Description
CM 501-IBW

Bracket for 501 Series Tray to I-Beam.

Threaded Rod

Part Number Part Size
TR-1 3/8" x 12" Threaded Rod
TR-2 3/8" x 24" Threaded Rod
TR-3 3/8" x 36" Threaded Rod
TR-4 3/8" x 48" Threaded Rod
TR-6 3/8" x 72" Threaded Rod
TR-8 3/8" x 96" Threaded Rod

Pre-cut and pre-chased threaded rod for overhead tray installations. All rods are 3/8"-16 10/24 high strength steel as per ASTM A36 and available in 1', 2', 3', 4' 6', and 8' lengths. Rods are inserted through the patented Snake Eyes and secured with two 3/8" hex nuts and one flat washer. No additional mounting accessories are necessary.

Concrete Wedge Anchor

• Anchor diameter equals hole diameter
• Comes complete with nuts and washers ready for use
• Collar expander offers 360° contact with masonry
• Projections on collar immediately grip concrete

Part Number Part Size
CM-WA-.25X1.75-SS316 ¼" D x 1 ¾" L
CM-WA-12X7.00-SS304 ½" D x 7" L
CM-WA-12X7.00-SS316 ½" D x 7" L
CM-WA-25X1.50-SS316 ¼" D x 1 ½" L
CM-WA-38X3.75-SS316 3/8" D x 3 ¾" L
CM-WA-58X5.25-SS316 5/8" D x 5 ¼" L

Concrete Anchor

Part Number
CM CA-38

Used to anchor trays and components to concrete. (1/4" hole)

Hanger Bracket for Threaded Rod Suspension

Part Number
CM TR-HBS for Steel
CM TR-HBC for Concrete

Hanger bracket for powder-actuated fastening. Design allows for easy installation using any 8 mm power actuated fastening system. Available for both steel and concrete. The New, Versatile Hanger that Simplifies Threaded Rod Suspension.

Attachment Hardware

Part Number Description
CM-FW-38-ZI Zinc Plated 3/8" Washer
CM-HN-38-ZI Zinc Plated 3/8" Hex Nut
CM-RC-38-ZI Zinc Plated 3/8" Rod Coupling

Snake Nut™ Threaded Rod Fastener

Part Number Description
STSN 38 Fits 3/8"-16 Threaded Rod
STSN 12 Fits ½"-13 Threaded Rod
STSN 58 Fits 5/8"-11 Threaded Rod

This innovative fastener eliminates the labor intensive need to hand thread hex nuts up a threaded rod. Simply insert the Snake Nut anywhere on the threaded rod and tighten into place with a set screw. Once locked into place, Snake Nut has been tested to hold up to 6,800 pounds.

Mega Snake Covers

Part Number Part Size
CM 801-6-C-60-02 6” Wide
CM 801-12-C-60-02 12” Wide
CM 801-18-C-60-02 18” Wide
CM 801-24-C-60-02 24” Wide

FINISH: G90 Galvanized

Patch Panel Pedestal Mount Kit

Part Number
CM 708-10-10495-KIT

Allows for structured cabling to be mounted below the raised floor in a code compliant data center. 4 RU capabilities.

Corner Bracket

Creates a radius for L, TEE, or X-shaped intersections of Cable Runway formed when two or more pieces of Cable Runway are connected together with the Junction-Splice Kit.

Part Number
CM 610-CB-15

Universal Crossing Grid for Snake Canyon

Install Snake Canyon Crossing Grids where 4-way intersections are necessary. No additional tools or mounting hardware required to complete installation.

Part Number Part Size
CM 301-CG 31" x 31"

Size Adapters

Part Number Description
CM 801-2-R6 2" D x 6" W Reducer
CM 801-2-R12 2" D x 12" W Reducer
CM 801-4-R6 4" D x 6" W Reducer
CM 801-4-R12 4" D x 12" W Reducer
CM 801-6-R6 6" D x 6" W Reducer
CM 801-6-R12 6" D x 12" W Reducer
CM 801-2/4-R 2" to 4" D x 6" W Reducer
CM 801-2/4-R12 2" to 4" D x 12" W Reducer
CM 801-4/6-R6 4" to 6" D x 6" W Reducer
CM 801-4/6-R12 4" to 6" D x 12" W Reducer
CM 801-2/6-R6 2" to 6" D x 6" W Reducer
CM 801-2/6-R12 2" to 6" D x 12" W Reducer

Transition from one size Mega Snake to another.

Hinged Splice Plates

Part Number Description
CM 801-2-H-SP 2" D Hinged Splice Plate Kit (2 splice plates per kit)
CM 801-4-H-SP 4" D Hinged Splice Plate Kit (2 splice plates per kit)
CM 801-6-H-SP 6" D Hinged Splice Plate Kit (2 splice plates per kit)

Each vertical directional change requires one kit.

Splice Kit

Part Number Description
CM 801-SP Mega Snake Splice Kit (2 splice plates per kit)

Splice kit maintains a continuous electrical and mechanical bond throughout the Mega Snake system.

Classified UL

Divider Grid

Part Number Description
CM 801-2-DG 2" D Divider Grid x 60"
CM 801-4-DG 4" D Divider Grid x 60"
CM 801-6-DG 6" D Divider Grid x 60"

Divides cable tray pathway.

Snake Nut™ Threaded Rod Fastener

Part Number Description
STSN 38 Fits 3/8"-16 Threaded Rod
STSN 12 Fits ½"-13 Threaded Rod
STSN 58 Fits 5/8"-11 Threaded Rod

This innovative fastener eliminates the labor intensive need to hand thread hex nuts up a threaded rod. Simply insert the Snake Nut anywhere on the threaded rod and tighten into place with a set screw. Once locked into place, Snake Nut has been tested to hold up to 6,800 pounds.

Snake Suspenders – Wire Rope Suspension Kit

This amazing proprietary system allows for the Mega Snake Series Cable Tray to be suspended via wire rope. The components attach directly to Mega Snake’s equipment mounting rail system. Once engaged, the Mega Snake height can be adjusted at will and without tools. It can be readjusted anytime during the installation process. Snake Suspenders add on gimbal kit can vector the wire rope in any direction for seismic cross bracing.

Part Number Part Size Description
CM 801-SSK-XX Snake Suspender Kit for Mega Snake
CM 801-SSK-GK Snake Suspender Gimbal Kit for Mega Snake

XX DENOTES LENGTH

Center Support

Bracket used when access to either side is required.

Part Number Description
CM 801-CS Center Support for 6", 8" and 12" W Tray
CM 801-18-CS Center Support for 18" W Tray
CM 801-24-CS Center Support for 24" W Tray

Note: 12" Mega Snake has built-in center support.

Wall Bracket

Part Number Description
CM 801-6-WB Wall Bracket for 6" W Tray
CM 801-12-WB Wall Bracket for 12" W Tray
CM 801-18-WB Wall Bracket for 18" W Tray
CM 801-24-WB Wall Bracket for 24" W Tray

Double Wall Bracket

Configurations to accommodate different trays on top and bottom available.

Part Number Part Size Description
CM 801-X-X-WB-D-OU Over/Under Wall Bracket

X DENOTES TRAY SIZE (DEPTH AND WIDTH)

Cabinet Bracket

Cabinet Bracket used to mount 801 series tray to the top of Data Cabinets. Mounting hardware not included.

Part Number Description
CM 801-X-X-CBN 3/5 Adjusts 3 - 5"
CM 801-X-X-CBN 6/10 Adjusts 6 - 10"

X DENOTES TRAY SIZE (DEPTH AND WIDTH)
CUSTOM CONFIGURATIONS AVAILABLE.

Cable Drop Out

Part Number Description
CM 801-TO-6 6" End Mounted Waterfall
CM 801-TO-8 8" End Mounted Waterfall
CM 801-TO-12 12" End Mounted Waterfall
CM 801-TO-18 18" End Mounted Waterfall
CM 801-TO-24 24" End Mounted Waterfall

Side Mount Cable Dropout

Part Number Description
CM 801-TO-3.50 Side Mounted Drop Out 3 1/2" W

Side mounted drop out designed to enter/exit cable through side rail on 801 series tray.

In-Line Cable Dropout

Part Number Description
CM 801-TO-3.875 * In-Line Cable Drop Out for 12", 18" and 24" Trays
CM 801-TO-5 In-Line Cable Drop Out for 12" and 24" Trays

* Required for 18" Tray

In-line cable drop out designed to enter/exit cable through a center section of 801 series tray.

Conduit Plate Side Mount

Part Number Description
CM 801-CP-010 ¾" Conduit
CM 801-CP-020 1" Conduit
CM 801-CP-030 1 ¼" Conduit
CM 801-CP-040 1 ½" Conduit
CM 801-CP-050 2" Conduit

Securely adapts a single conduit to the side of the 801 series tray.

Tray Inserts and Covers

Part Number Description
CM 801-X-C Tray Cover in 6", 12", 18" and 24" widths
CM 801-X-X-TI Tray Insert in 6",12", 18" and 24" widths
CM 801-X-TI-FLAT Tray Flat Bottom Insert in 6", 12", 18" and 24" widths

Flat inserts are available for all fittings, 90°, TEE's and 4-way intersections

In 60" lengths, two inserts per tray required.

Conduit Adapter

Part Number Description
CM 801-CP-2 2 Point Connection Conduit Bracket
CM 801-CP-10 10 Point Connection Conduit Bracket

*ADDITIONAL CONFIGURATIONS AVAILABLE.

In-Line Patch Panel Adapter

19″ Patch Panel bracket attaches to side rail on 801 series tray.

Part Number Description
CM 801-PP/19-1U 19" Patch Panel Bracket - 1U
CM 801-PP/19-2U 19" Patch Panel Bracket - 2U
CM 801-PP/19-3U 19" Patch Panel Bracket - 3U
CM 801-PP/19-4U 19" Patch Panel Bracket - 4U

CUSTOM SIZES AVAILABLE.

Fiber Optic Turnout Module

Part Number Description
CM 801-FOTO-S Fiber Optic Single Exit for Cables
CM 801-FOTO-D Fiber Optic Double Exit for Cables

Fiber optic exit designed to attach to the 801 series tray. Designed to protect cable and control bend radius.

Power Distribution Module

The Power Distribution Module is the cornerstone of the Power Mega Snake power distribution system. It is available empty or loaded with customer specified NEMA receptacles. It is also available pre-wired with MC cables to be carried by the Mega Snake and terminated at the electrical panel.

Part Number Description
CM 801-PM-XX Customer Specified Power Distribution Module

XX DENOTES CUSTOMER SPECIFIED POWER REQUIREMENTS. Call the Snake tray engineering team to assist you with the power distribution configuration and part numbers.

Termination Kit

Part Number
CM 801-WTK

Mega Snake support for 90° wall, floor and ceiling terminations.

Mega Snake® Air Separator

This auxiliary component attaches directly to the Mega Snake’s mounting rail to provide code compliant separation between high ampacity conductors. This separation system provides the spacing that will allow the full ampacity rating of cables in accordance with the NEC. Can be configured to the customer’s specific cable schedule.

Part Number Part Size Description
CM 801-AS-12-001 12" wide Mega Snake
CM 801-AS-18-001 18" wide Mega Snake
CM 801-AS-24-001 24" wide Mega Snake

Divider Fence for Snake Canyon

Part Number Part Size
CM 301-DG-2 24" L x 2" H
CM 301-DG-4 24" L x 4" H
CM 301-DG-6 24" L x 6" H
CM 301-DG-8 24" L x 8" H
CM 301-DG-12 24" L x 12" H

Divides Snake Canyon modules into separate cable pathways. Easy “Snap-in” design. Additional sizes available.

Transition Component

Part Number Part Size
CM 301-TR 23" W x 31" L

Transition Components provide continuous support for cable when transitioning from two different depth Snake Canyon modules.

Snake Canyon Cable Drop Out

Part Number Part Size
CM 301-TO 22" x 7"

Cable drop out for Snake Canyon. Continuous drop out for both straight sections and turning components. Provides a smooth transition for cables when exiting the tray. Maintains a consistent 4" radius eliminating kinked cables. Easily attaches to tray with cable ties.

Cam-Loc Turning Component Bridge Support

Install Snake Canyon Crossing Grids where 4-way intersections are necessary. No additional tools or mounting hardware required to complete installation.

Part Number
CM 301-X-TCS-CAM

X DENOTES DEPTH

Snake Canyon Bridge Support

Used to create a support bridge for turning components, transition components and/or crossing grids. Interfaces with adjacent snake canyon baskets.

Part Number Part Size
CM 301-TS-2 29 ½" x 1"
CM 301-TS-4 53 ½" x 1"

Snake Canyon Pedestal Mount Bridge

Part Number Part Size
CM 301-TRCB 25" x 3 ¼"

Used to create a support bridge for Turning Components, Transition Components and/or Crossing Grids. Interfaces with adjacent floor pedestals.

In-Line Locking Splice Plates

• Standard 4-hole pattern
• Furnished in pairs, with hardware
• One pair including hardware provided with each section
• For field installation drill 13/32” hole

Part Number Part Size
CM 653-4-SP-01 4" H
CM 653-6-SP-01 6" H

Expansion Splice Plates

• Expansion plates allow for one inch expansion or contraction of the cable tray, or where expansion joints occur in the supporting structure.
• Furnished in pairs with hardware.
• Bonding Jumpers are required on each side-rail (order separately).

Part Number Part Size
CM 653-4-ESP-01 4" H
CM 653-6-ESP-01 6" H

Vertical Adjustable Splice Plates

• Provides for changes in elevation that do not conform to standard vertical fittings
• Furnished in pairs hardware
• Bonding Jumper not required

Part Number Part Size
CM 653-4-VASP-01 4" H
CM 653-6-VASP-01 6" H

Cable Drop-Out

• These components provide a rounded surface to protect cable as it exits from the cable tray.
• Hardware is included

Part Number Part Size
CM 653-TO-T-06 6" W
CM 653-TO-T-09 9" W
CM 653-TO-T-12 12" W
CM 653-TO-T-18 18" W
CM 653-TO-T-24 24" W
CM 653-TO-T-30 30" W
CM 653-TO-T-36 36" W

Tray Divider, Straight Section

• These components create a vertical barrier when installed into the cable tray straight section
• Furnished with three #10 x ½” zinc plated self-drilling screws
• Standard length is 60″ (5 ft.)
• Sold individually

Part Number Part Size
CM 653-4-DG 4" H
CM 653-6-DG 6" H

Tray Divider, Horizontal Bend

• Horizontal Bend Barriers are flexible in order to conform to any horizontal radius
• Cut to length
• Furnished with three #10 x ½” zinc plated self-drilling screws
• Standard length is 60″ (5 ft.)
• Sold individually

Part Number Part Size
CM 653-4-DG-H 4" H
CM 653-6-DG-H 6" H

End Cap

• Creates a barrier at the terminal end on the cable tray run
• Furnished with installation hardware
• Sold Individually

Part Number Part Size
CM 653-4-X-EC 4" H
CM 653-6-X-EC 6" H

X DENOTES WIDTH OF TRAY

Bonding Jumper

• Use at each expansion splice and where the cable tray is not mechanically/electrically continuous to ground
• Installation hardware included
• Bonding jumper is 16″ long
• Sold individually

Part Number Description
CM BJ-6-8 6 GA, Copper, 8" Long, 55 AMPS
CM BJ-1 #1 Copper, 15" Long, 600 AMPS
CM BJ-2/0 2/0 Copper, 15" Long, 1000 AMPS
CM BJ-3/0 3/0 Copper, 15" Long, 1200 AMPS
CM BJ-4/0 4/0 Copper, 15" Long, 1600 AMPS
CM BJ-250 250 Copper, 18" Long, 2000 AMPS

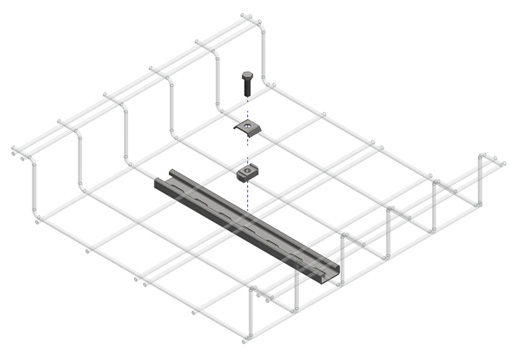

Cable Tray Clamp

Part Number Description
CM 653-TCK-01 without Hardware
CM 653-TCK-02 Steel, with Hardware*
CM 653-TCK-03 Aluminum, without Hardware

*Hardware
• (2) Tray Clamps
• (2) Hex Bolts
• (2) Strut Nuts

Threaded Rod

• Bonding Jumper not required.

Part Number Part Size
TR-1-G 3/8" - 16 x 1'
TR-2-G 3/8" - 16 x 2'
TR-3-G 3/8" - 16 x 3'
TR-4-G 3/8" - 16 x 4'
TR-5-G 3/8" - 16 x 5'
TR-6-G 3/8" - 16 x 6'
TR-8-G 3/8" - 16 x 8'
TR-10-G 3/8" - 16 x 10'
TR-1/2-1-G ½" - 13 x 1'
TR-1/2-2-G ½" - 13 x 2'
TR-1/2-3-G ½" - 13 x 3'
TR-1/2-4-G ½" - 13 x 4'
TR-1/2-5-G ½" - 13 x 5'
TR-1/2-6-G ½" - 13 x 6'
TR-1/2-8-G ½" - 13 x 8'
TR-1/2-10-G ½" - 13 x 10'
TR-5/8-1-G 5/8" - 11 x 1'
TR-5/8-2-G 5/8" - 11 x 2'
TR-5/8-3-G 5/8" - 11 x 3'
TR-5/8-4-G 5/8" - 11 x 4'
TR-5/8-5-G 5/8" - 11 x 5'
TR-5/8-6-G 5/8" - 11 x 6'
TR-5/8-8-G 5/8" - 11 x 8'
TR-5/8-10-G 5/8" - 11 x 10'

Loading based on safety factor 5. Standard Finish: Zinc plated

Rod Coupling

Part Number Part Size
CM RC-38 3/8"
CM RC-12 ½"
CM RC-58 5/8"

Nuts

Part Number Part Size
CM HN-38 3/8"
CM HN-12 ½"
CM HN-58 5/8"

Trapeze Support Kit

• Provides the necessary components for a single trapeze support in one kit. These kits are available in pre-galvanized steel with zinc plated hardware
• The support bar provides convenient pre-punched slots, eliminating the need for field drilling
• The entire kit is sealed in a plastic bag and boxed with the channel, which is pre-cut to the appropriate length as
shown in the chart
• Designed for use with ½” threaded rod (order rod separately)

Part Number Description
CM 653-TS-06 6" Tray Width / 14" Channel Length
CM 653-TS-09 9" Tray Width / 16" Channel Length
CM 653-TS-12 12" Tray Width / 20" Channel Length
CM 653-TS-18 18" Tray Width / 26" Channel Length
CM 653-TS-24 24" Tray Width / 32" Channel Length
CM 653-TS-30 30" Tray Width / 38" Channel Length
CM 653-TS-36 36" Tray Width / 44" Channel Length

Rooftop Support Bases with Channel

• Designed for use as a rooftop support for cable tray
• Each support has rubberized pads on the underside of each leg to minimize any chaffing of the existing rooftop
• Can be used with any of Snake Tray cable tray clamps and guides
• Ultimate Load Capacity: 1,000 lbs. (uniform load)

Part Number Part Size
CM 653-RS-28 5 5/8" H x 6" W x 28" L
CM 653-RS-36 5 5/8" H x 6" W x 36" L
CM 653-RS-42 5 5/8" H x 6" W x 42" L
CM 653-RS-50 5 5/8" H x 6" W x 50" L
CM 653-RS-60 5 5/8" H x 6" W x 60" L

Center Hung Tray Support

• Center Hung Cable Tray Support allows cable to be installed from both sides
• Eliminates costly cable pulling and field cutting of cable tray supports.  Labor costs are drastically reduced
• Required hardware and threaded rod material for trapeze  assemblies are reduced by 50%
• Designed for use with ½” threaded rod (order rod separately)
• Use with all aluminum and steel cable trays up to 24″ in width
• Load capacity is 700 lbs. per support.  Safety factor of 3
• Eccentric loading is not to exceed a 60% vs. 40% load  differential
• The maximum recommended unsupported span length is  144″/12 ft. (3.66m)
• Furnished with installation hardware

Part Number Part Size Description
CM 653-CS-18 18" H
CM 653-CS-30 18" H

Wall Bracket

• Wall bracket allows for the cable tray to be attached to a  vertical surface.
• Constructed from steel, this bracket will support the tray as well  as the load.
• Wall anchors MUST be designed to handle a shear load of the bracket as well as the load with a safety factor of 2.5.   Eccentric loading is not to exceed 60% vs. 40% load differential.
• 24″, 30″ and 36″ wall mounted tray support with gusset

Part Number Part Size Description
CM 653-WB-06 6"
CM 653-WB-09 9"
CM 653-WB-12 12"
CM 653-WB-18 18"
CM 653-WB-24 24"
CM 653-WB-30 30"
CM 653-WB-36 36"

Vertical Hanger Splice Plates

• Design Load is 1500#/pair Safety factor of 2.5.
• Furnished in pairs.
• Designed for use with either ½” threaded rod. (Order rod separately).

Part Number Part Size
CM 653-4-VHSP 4"
CM 653-6-VHSP 6"

Heavy Duty Hold-Down Bracket

• For 4″ or 6″ Aluminum Cable Tray
• Design load is 4,000#/pair.
• Four bolt attachment.
• Cable Tray attachment hardware is included. Hardware to  attach the bracket to the substrate sold separately.
• Recommended for support of vertical pathways.

Part Number
CM 653-HDB

Rapid Ship Cable Runway Kit with Brackets

The 5′ (1524 mm) length of this cable runway is designed to meet UPS requirements without additional charges. The 5′ (1524 mm) length of this cable runway is designed to meet UPS requirements without additional charges.

Kit consist of:
• (1) 5′ sections of cable runway
• (1) Wall Bracket
• (1) Rack Bracket
• Also available in 18″ and 24″ widths.

Part Number Part Size
CM 610-6-5-RSBK 6" W
CM 610-10-5-RSBK 10" W
CM 610-12-5-RSBK 12" W

Butt-Splice Kit

Connect two sections of runway end-to-end.
Kit consists of:
• (4) slice plates
• (2) 3/8″-16 trimmed head bolts
• (2) 3/8″-16 hex nuts
• (2) 3/8″ split lock washers

Part Number Description
CM 610-BSK Straight Splice Kit

Junction-Splice Kit

Connect two sections of runway end-to-end.

Kit consists of:
• (4) Slice plates
• (2) 3/8″-16 trimmed head bolts
• (2) 3/8″-16 hex nuts
• (2) 3/8″ split lock washers

Part Number Description
CM 610-JSK T - Splice Kit

Threaded Rod Ceiling Mounts

Part Number
CM 610-38-TRK

Secures threaded rod to Cable Runway. Sold in pairs, hardware not included.

Ceiling Mount Kit

Kit consist of: (Drawing Shows 2 Kits)

• (1) 6 ft 3/8″ threaded rod
• (1) Ceiling mount bracket
• (1) CM 610-38-TRK
• (2) 3/8″-Hex nuts
• (2) 3/8″- flat washers

Part Number
CM 610-TR6-MK

Wall Termination Kit

Kit consist of:

• (1) wall angle
• (2) 5/16″-18″ x 2-¼” J-bolts
• (2) 5/16″-18 hex nuts
• (2) 5/16″- lock washers

Part Number Part Size
CM 610-6-WTK 6" W
CM 610-12-WTK 12" W
CM 610-18-WTK 18" W
CM 610-24-WTK 24" W
CM 610-36-WTK 36" W

Rack Termination Kit

Rack Bracket

• Universal Mounting plate for data racks
• Installs in both orientations
• Comes with all necessary mounting hardware
• Powder coat finish available

Kit consist of:
• (4) 5/16″-18″ x 2-¼” J-bolts
• (4) 5/16″-18 hex nuts

Part Number
CM 610-6-RBN
CM 610-12-RBN
CM 610-18-RBN
CM 610-24-RBN

Cable Runway Rack Termination Kit

Rack Bracket
• Universal Mounting plate for  data racks
• Installs in both orientations
• Comes with all necessary  mounting hardware

Kit consist of:Kit consist of:
• (2) 45º outside clamps
• (2) Inside edge clamps
• (2) 3/8″-16 trimmed round head, square neck bolts
• (2) 3/8″-16 hex nuts and lock washers

Part Number
CM 610-X-RBN

Elevation Kit

Supports cable runway above a continuous row of racks or cabinets of varying heights and provides additional space between the tops of the racks or cabinets and the cable runway.

Features
• Multiple ranges of incremental elevation
• Can be mounted perpendicular or parallel
• Rack kit includes a single pair of brackets and assembly hardware
• Rack kits attaches to the rack with a mounting plate (sold separately)
• Cabinet kits include two pairs of brackets and assembly hardware
• Cabinet to bracket attachment hardware NOT included



Part Number Description
CM 610-RBN-ER-3 Rack Mount 1" - 3" Elevation
CM 610-RBN-ER-6 Rack Mount 4" - 6" Elevation
CM 610-RBN-ER-12 Rack Mount 10" - 12" Elevation
CM 610-CBN-ER-2/3 Cabinet Mount 2" - 3" Elevation
CM 610-CBN-ER-4/6 Cabinet Mount 4" - 6" Elevation

Radius Drop Out

Part Number Part Size
CM 610-TO-6 6" W
CM 610-TO-9 9" W
CM 610-TO-12 12" W
CM 610-TO-18 18" W
CM 610-TO-24 24" W

Side Mount Radius Drop Out

Part Number Description
CM 610-TO-SM Rail Mount Cable Waterfall

Patch Panel Adapter

Part Number Part Size
CM 801-PP/19-1U 19" Patch Panel Bracket - 1U
CM 801-PP/19-2U 19" Patch Panel Bracket - 2U
CM 801-PP/19-3U 19" Patch Panel Bracket - 3U
CM 801-PP/19-4U 19" Patch Panel Bracket - 4U

CUSTOM SIZES AVAILABLE.

Power Distribution Module

The Power Distribution Module is the cornerstone of the Cable Runway power distribution system. It is available empty, or loaded with customer specified NEMA receptacles. It is also available pre-wired with MC cables to be carried by the Cable Runway and terminated at the electrical panel.

Part Number Part Size
CM 801-PM-XX Customer Specified Power Distribution Module

XX DENOTES CUSTOMER SPECIFIED POWER REQUIREMENTS. Call the Snake tray engineering team to assist you with the power distribution configuration and part numbers.

Bonding Jumper

  • Use at each expansion splice and where the cable tray is not  mechanically/electrically continuous to ground
  • Installation hardware included
  • Bonding jumper is 16″ long
  • Sold individually



Part Number Description
CM BJ-6-8 6 GA, Copper, 8" Long, 55 AMPS
CM BJ-1 #1 Copper, 15" Long, 600 AMPS
CM BJ-2/0 2/0 Copper, 15" Long, 1000 AMPS
CM BJ-3/0 3/0 Copper, 15" Long, 1200 AMPS
CM BJ-4/0 4/0 Copper, 15" Long, 1600 AMPS

Straight Sections

Part Number Loading Dimensions Cable Capacity Cut Sheet BIM
CM 801-2-6-10 2" x 6" x 10' 125
CM 801-4-6-10 4" x 6" x 10' 250
CM 801-6-6-10 6" x 6" x 10' 375
CM 801-2-8-10 2" x 8" x 10' 165
CM 801-4-8-10 4" x 8" x 10' 330
CM 801-6-8-10 6" x 8" x 10' 490
CM 801-2-12-10 2" x 12" x 10' 250
CM 801-4-12-10 4" x 12" x 10' 490
CM 801-6-12-10 6" x 12" x 10' 735
CM 801-2-18-10 2" x 18" x 10' 375
CM 801-4-18-10 4" x 18" x 10' 735
CM 801-6-18-10 6" x 18" x 10' 1,100
CM 801-2-24-10 2" x 24" x 10' 490
CM 801-4-24-10 4" x 24" x 10' 980
CM 801-6-24-10 6" x 24" x 10' 1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL FOR CENTER HANGING OPTIONS.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

30° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-30 2" D x 6" W 30° Turn
CM 801-4-6-30 4" D x 6" W 30° Turn
CM 801-2-12-30 * 2" D x 12" W 30° Turn
CM 801-4-12-30* 4" D x 12" W 30° Turn
CM 801-6-12-30 * 6" D x 12" W 30° Turn
CM 801-2-18-30 2" D x 18" W 30° Turn
CM 801-4-18-30 4" D x 18" W 30° Turn
CM 801-6-18-30 6" D x 18" W 30° Turn
CM 801-2-24-30 2" D x 24" W 30° Turn
CM 801-4-24-30 4" D x 24" W 30° Turn
CM 801-6-24-30 6" D x 24" W 30° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-45 2" D x 6" W 45° Turn
CM 801-4-6-45 4" D x 6" W 45° Turn
CM 801-2-12-45 * 2" D x 12" W 45° Turn
CM 801-4-12-45* 4" D x 12" W 45° Turn
CM 801-6-12-45 * 6" D x 12" W 45° Turn
CM 801-2-18-45 2" D x 18" W 45° Turn
CM 801-4-18-45 4" D x 18" W 45° Turn
CM 801-6-18-45 6" D x 18" W 45° Turn
CM 801-2-24-45 2" D x 24" W 45° Turn
CM 801-4-24-45 4" D x 24" W 45° Turn
CM 801-6-24-45 6" D x 24" W 45° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

652 Series Snake Way Secured Pathway Tray

Applications:
Galvanized steel 6″ x 6″ x 10′ wire way with a unique opening cover design allows cables to be safely installed along the entire run without pulling on the cable. Additional lengths and profiles are available. NEMA Type 1

Features:Features:
• Large bend radius specifically designed to allow for the installation  of fiber optic  cable. All trays, T’s and crosses come with a 12″ inside radius
• Available with or without knockouts
• Unique hinged flat cover design
• Secure bolt together construction
• Constructed from 16 GA GA galvanized steel with  customer specified powder coat finish available

Part Number Part Size
CM 652-6-6-120-H-PC-GY 6" x 6" x 10'

652 Series Snake Way Secured Pathway 4-Way Component

6″ x 6″ x 6″ x 6″ 4-way component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

Part Number Part Size
CM 652-6-6-CG-PC-GY 6" x 6" x 6" x 6" ‘4-way’

652 Series Snake Way Secured Pathway “T” Component

6″ x 6″ x 6″ “T” component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

Part Number Part Size
CM 652-6-6-90-X-PC-GY 6" x 6" 90°

652 Series Snake Way Secured Pathway 90° Component

6″ x 6″ 90° component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

Part Number Part Size
CM 652-6-6-90-X-PC-GY 6" x 6" 90°

652 Series Snake Way Secured Pathway 45° Component

6″ x 6″ 45° component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″
radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

Part Number Part Size
CM 652-6-6-45-X-PC-GY 6" x 6" 45°

Universal Cable Runway

Support backbone and horizontal cables in the telecommunications or equipment rooms and cross-connects on racks or cabinets. A wide selection of supports splices and accessories are available.

Features:
• Constructed of rectangular steel tubing for strength and support
• 130 lb/ft maximum load with runway supported every five feet
•  Meets ANSI/TIA/EIA installation guidelines

Part Number Part Size
CM 610-4-10 4" W*
CM 610-6-10 6" W
CM 610-8-10 8" W*
CM 610-9-10 9" W*
CM 610-10-10 10" W*
CM 610-12-10 12" W
CM 610-15-10 15" W*
CM 610-18-10 18" W
CM 610-20-10 20" W*
CM 610-24-10 24" W
CM 610-30-10 30" W*
CM 610-36-10 36" W*

*MADE TO ORDER SIZES AVAILIABLE

Rapid Ship Cable Runway Kit

The 5′ (1524 mm) length of this cable runway is designed to meet UPS shipping requirements without additional charges.

Kit consist of:
• (2) 5′ sections of cable runway
• (1) Butt Splice Kit
• Also available in 18″ and 24″ widths

Part Number Part Size
CM 610-6-5-RSK 6" W
CM 610-10-5-RSK 10" W
CM 610-12-5-RSK 12" W

Cable Runway Horizontal 90º

Creates a gradual bend in the horizontal plane of Cable Runway. Designed for cabling in conformance with the minimum bend radius requirements (typically 4 times the cable diameter). Made of lightweight tubular steel to fit a standard Cable Runway.

Part Number Part Size
CM 610-4-90 4" W*
CM 610-6-90 6" W
CM 610-8-90 8" W
CM 610-9-90 9" W*
CM 610-10-90 10" W*
CM 610-12-90 12" W
CM 610-15-90 15" W*
CM 610-18-90 18" W
CM 610-20-90 20" W*
CM 610-24-90 24" W
CM 610-30-90 30" W*
CM 610-36-90 36" W*

*MADE TO ORDER SIZES AVAILIABLE

Cable Runway Vertical Bend

Creates a gradual bend for inside and outside bends

Part Number Part Size Description
CM 610-4-VB 4" W
CM 610-6-VB 6" W
CM 610-8-VB 8" W
CM 610-9-VB 9" W
CM 610-10-VB 10" W
CM 610-12-VB 12" W
CM 610-15-VB 15" W
CM 610-18-VB 18" W
CM 610-20-VB 20" W
CM 610-24-VB 24" W
CM 610-30-VB 30" W
CM 610-36-VB 36" W

90° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-90 2" D x 6" W 90° Turn
CM 801-4-6-90 4" D x 6" W 90° Turn
CM 801-2-12-90 * 2" D x 12" W 90° Turn
CM 801-4-12-90 * 4" D x 12" W 90° Turn
CM 801-6-12-90 * 6" D x 12" W 90° Turn
CM 801-2-18-90 2" D x 18" W 90° Turn
CM 801-4-18-90 4" D x 18" W 90° Turn
CM 801-6-18-90 6" D x 18" W 90° Turn
CM 801-2-24-90 2" D x 24" W 90° Turn
CM 801-4-24-90 4" D x 24" W 90° Turn
CM 801-6-24-90 6" D x 24" W 90° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

TEE Section

Part Number Part Size Cut Sheet BIM
CM 801-2-6-T 2" D x 6" W TEE Section
CM 801-4-6-T 4" D x 6" W TEE Section
CM 801-2-12-T * 2" D x 12" W TEE Section
CM 801-4-12-T * 4" D x 12" W TEE Section
CM 801-6-12-T * 6" D x 12" W TEE Section
CM 801-2-18-T 2" D x 18" W TEE Section
CM 801-4-18-T 4" D x 18" W TEE Section
CM 801-6-18-T 6" D x 18" W TEE Section
CM 801-2-24-T 2" D x 24" W TEE Section
CM 801-4-24-T 4" D x 24" W TEE Section
CM 801-6-24-T 6" D x 24" W TEE Section

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

Crossing Grid

Part Number Part Size Cut Sheet BIM
CM 801-2-6-CG 2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG 4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG * 2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG * 4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG * 6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG 2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG 4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG 6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG 2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG 4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG 6" D x 24" W 4-Way Crossing Grid

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

MC Snake Tray Adjustable Pole for Installing MC

Part Number Part Size Description
CM 701-MCPOLE 8' to 14' L

Adjustable light weight MC Pole allows easy installation of MC Cable in 701 series MC Tray with out the use of ladders.

MC Snake Tray Double Pocket

Part Number Part Size
CM 701-25D-10 2" H x 5" W x 10' L
CM 701-210D-10 2" H x 10" W x 10' L

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

MC Snake Wall Mount

Hand bendable cable tray designed to secure MC Cable Wall Mount.

Part Number Part Size
CM 701-6-6-112-WM 6" H x 6" W x 10' L

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

MC Snake Double Tier (Both Data and MC Cables)

Hand bendable cable tray double tier upper level for MC Cable, lower level for data cable.

Part Number Part Size
CM 701-SK-0269 Upper Pathway 2.2" H x 4.5" W x 10' L
CM 701-SK-0269 Lower Pathway 3" H x 5" W x 10' L

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

Power Tracks

Part Number Description
CM 707-50-4-4 50 Amp 4 ft. track with 4 receptacles, 3-Phase
CM 717-50-4-4 50 Amp 4 ft. track with 4 receptacles, Dual Circuit
CM 707-50-8-8 50 Amp 8 ft. track with 8 receptacles, 3-Phase
CM 717-50-8-8 50 Amp 8 ft. track with 8 receptacles, Dual Circuit

Modular electrical power distribution tracks.

Interlink

Part Number Description
CM 707-50-IL 50 Amp Interlink, 3-Phase
CM 717-50-IL 50 Amp Interlink, Dual Circuit

Interlink allows for changes in direction and can easily snake around obstacles under raised floors and workstations.

Feed Module

Part Number Description
CM 707-50-FM 50 Amp Feed Module, 3-Phase
CM 717-50-FM 50 Amp Feed Module, Dual Circuit

Feed module delivers power to the snap-together Snake Bus tracks to instantly configure the electrical plan. Available with custom pre-wired feeder cable 1-3 phase with ground and oversized neutral.

Feed Module TEE

Part Number
CM 707-50-FMT

Feed Module TEE delivers power to the snap-together Snake Bus tracks in the middle of a run. The TEE allows for tracks to be installed on each side of the module, extending the overall run length. Available with custom pre-wired feeder cable, 1-3 phase with integrated ground and an oversized neutral.

Snake Bus® Current Monitoring System

Part Number Description
CM 707-50-FM-LED Colored LED indicators
CM 707-50-FM-DIG Digital readout of current use
CM 707-50-FM-IPA IP addressable

Snake Bus is available with a current monitoring system that gives facility managers real-time data on current loads.
In addition, the IP addressable module with accompanying software provides facility managers email alerts on current loads, and provides real-time and historical data on power consumption for energy resource planners.

Floor Riser Snake Bus Track

The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.

Part Number Description
CM 707-FR-4 Floor Riser for 4ft. Snake Bus Track
CM 707-FR-8 Floor Riser for 8ft. Snake Bus Track

Floor Riser for Feed Module

The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.

Part Number
CM 707-FR-FM

Snake Bus Recessed Floor Box with 3 Independent Protected Circuits

Features:
• Designed to customer requirements with up to 3 independent circuits and 12  “keystone” receptacles for data
• Designed to work in conjunction with 707 Series Snake Bus Power Distribution
• Two separate compartments for data and power
• Steel cover with 2-cable access points and recessed lid will accept carpet

Part Number Part Size Description
CM 707-20-A-25-04-20-3-005-0018 13" L x 9" W x 5 ½" D

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT YOUR SPECIFIC REQUIREMENTS.

Under Desk Power Module

Applications:
Power module mounts under the work surface. The electrical whip feeds through Snake Air pass through air flow manager in an access floor.

Features:
• Designed to customer specific needs to work with the CM 707 Snake Bus Power Distribution System
• Installs without the need of any fasteners.
• Complete with built-in circuit breaker and Indicator light
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available

Part Number Part Size
CM707-20-1-24-26-20-2-005-0000 15 ¾" L x 3 ¾" W x 2 ¾" D

Snake Whip Horizontal Rack Mount One Rack Unit

Applications:
These industrial quality rack mount Power Distribution Units (PDU) are built in a wide variety of configurations. Snake Air pass through air flow manager in an access floor.

Features:
• Part of CM 707 Snake Bus Power Distribution System
• 1 RU
• Six NEMA 15 AMP or 20 AMP receptacles
• Circuit breakers protected
• Indicator lights
• Black powder coat

Part Number Part Size
CM 707-SWHRM-01 18" L x 1 ¾" W x 3 ½" D

Recessed Data Center Floor Power Reception Point

Applications:
This custom designed unit for our data center customer allows for separate A and B channels of power while keeping airflow segregated under the floor.

Features:
• Accessory for the 707 Snake Bus Power Distribution System
• Individual compartmented 3-Phase protected circuits
• Installed into raised access floors
• Redundant power capabilities
• Two NEMA 530R receptacle, 30 AMP
• Additional configurations available

Part Number Part Size
CM707-30-A-10-28-4-2-024-0029 17" L x 3 ½" W x 7" D

Solar Snake Charmer

This is the long-awaited solution for inspector’s request to get connectors and cables out of water and snow on rooftops. Snake Charmer snaps into place under the panel to carry connectors safely and securely at the rear of the panel. No tools required.

Part Number
CM 407-SC

Universal Ballasted Roof Top Anchor

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Part Number
CM 407-SF-1

Ballasted Roof Top Anchor

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Part Number
CM 407-SF-4

Kindorf Mount

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Part Number
CM 401-SF-1-RD

Solar Snake Tray Covers for 90° Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

Part Number Description
CM 407-22-C-60 Cover for 2” x 2” x 10’ Powder Coated Gray
CM 407-33-C-60 Cover for 3” x 3” x 10’ Powder Coated Gray
CM 407-34-C-60 Cover for 3” x 4” x 10’ Powder Coated Gray
CM 407-22-C-60-SS Cover for 2” x 2” x 10’ Stainless Steel
CM 407-33-C-60-SS Cover for 3” x 3” x 10’ Stainless Steel
CM 407-34-C-60-SS Cover for 3” x 4” x 10’ Stainless Steel

Solar Snake Tray Covers for 180° Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

Part Number Description
CM 407-22-180-C-60 Cover for 2” x 2” x 10’ Powder Coated Gray
CM 407-33-180-C-60 Cover for 3” x 3” x 10’ Powder Coated Gray
CM 407-34-180-C-60 Cover for 3” x 4” x 10’ Powder Coated Gray
CM 407-22-180-C-60-SS Cover for 2” x 2” x 10’ Stainless Steel
CM 407-33-180-C-60-SS Cover for 3” x 3” x 10’ Stainless Steel
CM 407-34-180-C-60-SS Cover for 3” x 4” x 10’ Stainless Steel

Solar Snake Tray Covers for 180° Low Profile Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

Part Number Description
CM 407-41-180-C-60 Cover for 4” x 1” x 10’ Powder Coated Gray
CM 407-61-180-C-60 Cover for 6” x 1” x 10’ Powder Coated Gray
CM 407-81-180-C-60 Cover for 8” x 1” x 10’ Powder Coated Gray

CB-8

Tin plated grounding connector

Part Number Part Size
CB-8 Up to #2 AWG

CB-12-SS

Stainless Steel Connector Bolt

Part Number
CB-12-SS

Solar Snake Tray for Fixed Tilt Arrays

Part Number Part Size
CM 407-SK-0516-10-PC-GY-S12 4 ¾" x 1 3/8" tray for 15° tilt rack

Solar Snake Tray for Fixed Tilt Arrays – Double

Part Number Part Size
CM 407-SK-0515-10-PC-GY-S12 Double 4 ¾" x 1 3/8" tray for 15° tilt rack

Cable Turnout

Part Number
CM 407-SK-0515-16-TO

Universal Inline Connector Bolt for Utility Solar Trays

Smaller size accommodates the smaller spines of utility solar trays. Provides a mechanical and a bonded electrical connection when joining tray sections to one another.

Part Number
CB-14

Solar Snap Snake Tray for Messenger Wire

This cable conveyance system suspends with messenger wire and offers a continuous support of cables.
• Attaches to messenger wire
• Multiple configurations available
• Finishes: SS/PC-GY



Part Number Description
CM 407-XX-SN-10-MW

XX DENOTES RADIUS OF RING

Solar Snake Tray Air Separator

This is the ideal solution when carrying high voltage power from utility grade solar arrays by providing code compliant cable separation to eliminate the need to de-rate cables. This is the ideal solution when carrying high voltage power from utility grade solar arrays by providing code compliant cable separation to eliminate the need to de-rate cables.

• Suspends from messenger wire
• Multiple configurations available

Part Number
CM 407-SK-0617-XX

RESI Box

Snake Tray’s structured media enclosures create a distribution point for AV, voice and data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Available in 14″ and 28″ sizes to address the broad range of capacities for single family homes, MDUs, and light commercial applications. Snake Tray’s structured media enclosures support new and retrofit installations. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated beveled screw on front panel.

Part Number Part Size
CM708-SK-0574 14" L x 14" W x 3 ½" D
CM708-SK-0575 28" L x 14" W x 3 ½" D

RESI Box – 28″ L

Snake Tray’s Structured Media enclosures creates a distribution point for AV, Voice and Data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Available in 14″ and 28″, sizes to address a broad range of capacities for single family homes, MDUs, and light commercial applications, Snake Tray’s Structured Media enclosures support new and retrofit installations. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, Powder Coated beveled screw on front panel.

Part Number Part Size Description
CM708-SK-0575 28" L x 14" W x 3 ½" D

RESI Box with Removable Tray, Flush Cover

Snake Tray’s structured media enclosures create a distribution point for AV, Voice and Data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Supports new and retrofit installations. Perforated and slotted back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated flush ventilated screw on front panel.

Part Number Part Size
CM708-SK-0599 14 " L x 14" W x 3 ½” D

Hideaway Floor Enclosure

Features:
• This trim less, flush floor box provides a practical and non-intrusive solution for easy access to cables
• Unique lift-off section of the cover allows full access to cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit
• Sturdy steel cover is installed flush with the floor. The edging is less than 1/4″ wide and allows for multiple surfaces to be integrated within the cover. When the box is not in use, only the elegant, hand-mitered edge is visible

Part Number
708-442-11792

RESI Box with Beveled Plastic Cover

Recessed wall mounted enclosure with plexiglass window for storing wireless transmitters in dorm rooms, general office spaces and hospitality environments. It provides a secure 14″ wide by 28″ high space for equipment up to 3 ½” deep. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated beveled screw on front panel.

Part Number Part Size
CM708-SK-0622 14" L x 14" W x 3 ½" D
CM708-SK-0627 28 " L x 14" W x 3 ½” D

Horizontal Surface Wall Mount Enclosure

Applications:

Designed for utility environments where surface mount is most practical.

Features:

  • Secured locking cover for Secret Internet Protocol Router Network (SIPRNet) applications
Part Size
10" L x 14" W x 3" D

Wall Mount Mini ONT Box, Surface Mount

Applications:
Designed for utility environments where surface mount is most practical.

Features:
Secured locking cover for Secret Internet Protocol Router Network (SIPRNet) applications



Part Number Part Size
CM708-SK-0578 10" L x 14" W x 3" D

Wall Mount Mini ONT Box, Recessed Mount

Recessed wall mounted enclosure with flush mount cover . Offers a secure consolidation point for open offices, small horizontal closets, Mini ONT and multimedia installations. Use  in dorm rooms, general office spaces and hospitality environments.  Provides a secure 14”wide by 8″ high space for equipment up to 3 ½ ” deep.  Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel.  Available with solid or ventilated screw on front panel.

Part Number Part Size
CM708-SK-0604 14” L x 8” W x 3 ½”D

Rectangular Consolidation Point Enclosure

Applications: Secure consolidation point for open offices, small horizontal closets, ONT and multimedia installations. Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Easily mounts to 16″ OC studs
• Flush mounted lockable  louvered door
• Constructed from 16 GA  galvanized steel
• Perforated back panel for simple attachment of components
• Available with 2 gang utility  electrical box
• Available with Palusol®  fire-protection panels
• Pre-configured and  User-configurable versions

Part Number Part Size
CM 708-SK-0493-ONT 20" L x 16" W x 3" D

Square Consolidation Point Enclosure

Applications: Secure consolidation point for open offices, small horizontal closets, ONT and multimedia installations. Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Easily mounts to 16” OC studs
• Flush mounted lockable louvered door
• Constructed from 16 GA galvanized steel
• Accepts multiple manufacturers Active Ethernet ONTs
• Available mounting bracket for up to 10 RJ45 modular connectors
• Available with 2 gang utility electrical box
• Available with Palusol®  fire-protection panels
• Available with Perforated back panels
• Pre-configured and  User-configurable versions

Part Number Part Size
CM 708-SK-0526-ONT 14" L x 14" W x 3" D

Recessed Remote Equipment Cabinet

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• 6RU Rack space, Dual mount  optional
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA  galvanized steel
• Vented bottom panel
• 10/32 ground studs (4)
• Available with 4 ½” cooling fan(s)
• Available with 4 gang utility electrical box
• Available with Palusol® fire-protection panels
• Available with Perforated or Plywood back panels
• Available with recessed bezel kit Pre-configured and User-configurable versions

Part Number Part Size
CM 708-SK-0568 48" L x 24" W x 12" D

Recessed Electronic Enclosure

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flexible mounting between studs in existing or new construction.  Architecturally pleasing metal bezel with hinged door complete with vented louvers.  Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Up to 18RU Rack space, Door-mounted rack system
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA galvanized steel
• Vented side and bottom panel
• 10/32 ground studs (4)
• Available with 4 ½” cooling fan(s)
• Available with 4 gang utility electrical box
• Available with Palusol® fire-protection panels
• Available with Perforated or Plywood back panels
• Available with recessed bezel kit Pre-configured and User-configurable versions

Part Number Part Size
CM708-SK-0579 72 " L x 24" W x 12" D

Fiber Cassette Module 110 Block CAT 6A

Applications: This fully assembled ceiling mount fiber Consolidation enclosure installs in 2’ x 2’, 2’ x 4’ and 2’ x 6’ drop ceilings.

Features:
• One (1) Leviton 288 Pair block with C4 clips
• One (1) Test Patch-Cord, 110 to RJ45
• Fiber mounting plate for two (2) MPO Cassettes, Lances for Velcro tie-down
• Third cassette shelf available
• Removable Latched door with two (2) keyed locks
• Sixteen (16) Trade Size EKO’s with #4404 Arlington Snap-In Grommets (included)
• Constructed from 16 GA galvanized steel with Nortek#P7RW124 White Peel powder Coat Finish, Other colors are available upon request
• Four point built-in support brackets for threaded rod or hangers
• Two (2) Ilsco-TA-6-S Ground lugs

Part Number Part Size
CM 708-1100-0606 24" L x 24" W x 6" D

Basic 2′ x 2′ Box Empty

Applications: This fully assembled ceiling mount enclosure installs in 2′ x 2′, 2′ x 4′ and 2′ x 6′ drop ceilings. This particular model has 6 RU of standard 19″ passive rack mountable space and is fitted with a horizontal cable slack manager. Lockable secure door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures. Cover opens safely with two built-in pneumatic cylinders.

Features:
• Lockable secure lid design
• Removable door mounted assembly for 19″rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Multiple knockout configurations available
• Simplified design reduces network down time and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel or aluminum with customer specified powder coat finish available
• Multiple sizes available
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available

Part Number Part Size
CM 708-SK-0330 22" L x 22" W x 12" D

Overhead Distribution Module (Non Powered)

Applications: This fully assembled ceiling mount enclosure installs in 2’ x 2’, 2’ x 4’ and 2’ x 6’ drop ceilings. 6 RU of standard 19” passive rack mountable space and is fitted with a horizontal cable slack manager. Door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures.

Features:
• Welded Corners
• Lockable secure cover design
• Removable door mounted assembly for 19”rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Adjustable ONT Shelf
• 2 ½” Knock Out for conduit
• Multiple knockout configurations available
• Cover opens safely with two built-in pneumatic cylinders
• Exhaust fan built into cover
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Multiple sizes available
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available

Part Number Part Size
CM708-SK-0629 24" L x 24" W x 12" D - 120 V Exhaust Fan
CM708-SK-0633 24" L x 24" W x 12" D - 48 V Exhaust Fan

Ceiling box

Part Number
CM708-1100-0606

Overhead Distribution Module with Integrated Power Supply

Applications:This fully assembled ceiling mount enclosure with Integrated Power Supply installs in 2′ x 2′, 2′ x 4′ and 2′ x 6′ drop ceilings. 6 RU of standard 19″ passive rack mountable space and is fitted with a horizontal cable slack manager. Door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures.

Features:
• Integrated Power Supply
• Welded Corners
• Lockable secure cover design
• Removable door mounted assembly for 19″rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Adjustable ONT Shelf
• 2 ½” Knock Out for conduit
• Multiple knockout configurations available
• Cover opens safely with two built-in pneumatic cylinders
• Constructed from 16 GA galvanized steel
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available
• Exhaust fan built into cover
• Door assisted gas struts
• Built in cable management
• Customized Solutions available

Part Number Part Size
CM 708-SK-0647 - AC Power 24" L x 24" W x 12" D
CM 708-SK-0613 - DC Power 24" L x 24" W x 12" D

CM 708-SK-0647 - AC Power, 120V Power module with 7 NEMA 20A receptacles, 120V Exhaust Fan

CM 708-SK-0613 - DC Power, 750 Watt Power Supply, 120V Exhaust Fan

Basic 2′ x 4′ Box Empty

Applications: This fully assembled extra large ceiling mount enclosure installs in 2′ ceiling grid, measures 2′ x 4′. This particular model can be mounted with 12 RU of standard 19″passive rack mountable space and horizontal cable slack managers. Lockable secure door has a capacity of over 75 pounds and can be customized to user specifications to accept other component structures. Vented cover opens safely with two built-in pneumatic cylinders. Single lockable handle.

Features:
• Lockable secure lid design
• Can be fitted with 19″ rack mounted panels and active equipment with a total of 12 RU
• Simplified design reduces network down time and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel or aluminum with customer specified powder coat finish available
• Multiple sizes available
• Eight point built-in support brackets for threaded rod or hangers
• Multiple knockout configurations

Part Number Part Size
CM 708-SK-0565 48" L x 24" W x 12" D

Ceiling Mounted Remote Equipment Cabinet

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flush mounted, white enclosure installs into a standard 2′ x 2′ grid ceiling. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Designed for Power, Data and Active AV Devices in the Ceiling
• Multiple Size EKO’s on all four sides
• Dual mounted 6RU Rack space for  active and passive equipment
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA  galvanized steel
• Louvered removable hinged door
• Two gas assisted struts
• 6 point mounting brackets
• Available with up to 4 – 4 ½”  cooling fans and ducted hot air removal system
• Available with integrated power configurations both AC and DC
• Available with Palusol®  fire-protection panels
• Available with Acoustical foam for added sound mitigation
• Pre-configured and  User-configurable versions

Part Number Part Size
CM 708-SK-0556 24" L x 48" W x 12" D

Ultra Low Profile

Applications: The Ultra Thin floor box designed for extremely low profile floors incorporates both electrical and data into a 1 ½” deep shallow profile design. This design will work in all low profile raised floor applications. The unique completely flush mount split cover is an industry first! UL Listed and approved, this box will meet with all local codes and standards. Enclosure can be customized to meet customer’s specifications.

Features:
• Ultra slim design only occupies 1 ½” of height in an access floor
• Built-in data and power receptacles
• Customizable to meet a customer’s  specifications
• Flush mount design (eliminates  tripping hazards)
• Split hinged door
• UL Listed

Part Number Part Size
CM 708-78-10876 11 ½" L x 7 ½" W x 1 5/8" D

Medium Profile Floor Box

Features:
• Designed to customer requirements for flexibility and durability
• Two separate compartments, one on each side of the unit
• Either or both can be used for power or data
• Multiple AV, and Data configurations are available
• Constructed from 16 GA galvanized steel
• Powder coated steel cover with 2-cable access points with recessed lid
• Designed to work with the 707 Series Snake Bus Power Distribution System

Part Number Part Size
CM708-FB-XX 13"L x 9"W x 2.5"D

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT OUR SPECIFIC REQUIREMENTS

Snake Bus Recessed Floor Box with 3 Independent Protected Circuits

Features:
• Designed to customer requirements with up to 3 independent circuits and 12 keystone receptacles for data
• Designed to work in conjunction with 707 Series Snake Bus Power  Distribution
• Two separate compartments for data and power
• Steel cover with 2-cable access points and recessed lid will accept carpet

Part Number Part Size
CM 707-20-A-25-04-20-3-005-0018 13" L x 9" W x 5 ½" D

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT OUR SPECIFIC REQUIREMENTS

Circular Data & Power Reception Module for Access Floors

Snake Tray’s new all metal circular floor box for access floors offers a durable data and power reception module for workstations. Its optional integrated circuit breaker eliminates nuisance power interruptions to the rest of the office. Models are available with standard or custom configurations to meet the customer’s specifications. Available in powder coated or anodized finishes to coordinate with any architectural design.

Features:
• All metal design gives this floor box durability to last a life time
• Circular design allows for the module to be installed in the same size opening as standard air diffusers
• Two compartment all metal construction for both power and/or data connections
• Standard and custom electrical and data configurations available
• Optional current overload protection
• Available in powder coated or anodized finishes to coordinate with the architectural design of the building
• Made in the USA and 100% compliant with the Buy America Act



Part Number Part Size
CM 708-78-11568 10" OD x 5" D

Zone Distribution Box II Under Floor use for Fiber & Copper

Applications: Fully assembled large capacity, secure enclosure that works within the confines of office raised floor tiles. Will accommodate up to 6 RU of standard 19″ rack mountable field terminated or pre-terminated connectivity solutions.

Features:
• Unique angled support allows for 2 more RU spaces with the same volume and footprint
• Built-in internal cable manager
• Secure locking hinged cover that allows for unimpeded working space
• Constructed from 16 GA galvanized steel powder coat finish available
• Available with standard knockouts or customer specified locations
• Accepts a variety of connectivity solutions

Part Number Part Size
CM 708-78-10720-2.50 22" L x 15 ½" W x 8 ½" D

Low Profile Data Module with Custom Patch Panel

Applications: Fully assembled low profile, secure enclosure that works within the confines of office raised floor tiles. Includes a variety of customer dictated working options that will accommodate up to 4 RU of standard 19″ rack mountable field terminated or pre-terminated connectivity solutions.

Features:
• Built-in internal cable manager
• Secure locking hinged cover that allows for unimpeded work space
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Available with standard knockouts or  customer specified locations
• Accepts a variety of connectivity solutions
• Multiple 2 and 4 RU custom connectivity mounting plates are available

Part Number Part Size
CM 708-SK-0216 16" L x 15 ½" W x 4 ¾" D

Zone Distribution Box Empty – Base Box

Applications: Under-floor zone cabling consolidation enclosure. The in-floor enclosure saves valuable real estate by providing a secure solution under the floor which relieves congestion on racks and cabinets for installing network equipment.

Features:
• Lockable secure lid design
• Multiple knockout configurations available, edge protected cable access points
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Custom configurations are available

Part Number Part Size
CM708-1100-05-03 21" L x 21" W x 8" D

Fiber Optic Breakout System with Copper Channels for Access Floors

Applications: This cylindrical raised floor distribution station is designed to customer’s specific requirements for a complete pre-configured plug-n-play network terminal for copper and fiber. Inbound 12 strand MPO breaks into 6 channels to SC/LC duplex connectors as well as four category 6/6A channels.

Features:
• Designed in conjunction with architectural firms, this cylindrical module incorporates both fiber and copper telecommunication interfaces in a single compact design specifically for raised floor installations
• Modular telecommunications cabling system shall ensure efficient voice and data signal transmission with trueplug-and-play modularity
• The keyed circular 16 GA galvanized steel cover will match typical in-floor air diffusers for architectural symmetry
• The body of the module is constructed from 16 GA aluminum

Part Number Part Size Description
CM 708-DC-78-10711 9 1/8" OD x 5 5/16" D

Ultra Low Profile Data Distribution Box

Applications: The Ultra Thin floor box designed for extremely low profile floors. 1 RU of standard 19″ passive rack mountable space and horizontal cable slack managers. Lockable secure door.

Features:
• Ultra slim design only occupies 2 ¾” of height in an access floor
• Removable locking solid cover
• Device brackets are movable to accommodate different size components
• Eight (8) 1.28” x 3.19” openings, 4 per side, for easy cable entry
• Built in strain relief points for Velcro straps
• Dimpled floor stand offs
• Standard Black Powder Coat, other colors are available upon request

Part Number Part Size
CM708-05-0024 21" L x 21" W x 2 ½” D

Zone Distribution Box – High Density Fiber

Applications: The in-floor Fiber Cassette enclosure is an ideal zone cabling solution serving as a consolidation point or zone distribution area. The in-floor enclosure saves valuable real estate by providing a secure solution under the floor which relieves congestion on racks and cabinets for installing network equipment. The enclosure can be used along with up to 14 pre-terminated fiber cassettes as a ZDA for instant data center installations and reconfigurations. The innovative lift-out tray design allows for easy cable configurations, minimizes cable pinching and will maintain proper bend radius for cable.

Features:
• Lockable secure lid design
• Fold out platform allows for accessibility to 14 fiber cassettes
• Multiple knockout configurations available, edge protected cable access points
• 14 MPO – Input/output 84 channels of SC Duplexes
• Simplified design reduces network downtime and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel with customer specified powder coat  finish available
• Multiple sizes available

Part Number Part Size
CM 708-1100-05-01 21" L x 21" W x 8" D

Under Floor Data Distribution System

Features:
• Designed to a customer’s specific requirements to accommodate the need for specialized fire code requirements
• Designed to be used with Series 652 Snake Way Secured Pathway
• 8 RU of 19″ rack mountable space
• Removable locking cover
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Custom knockout configurations

Part Number Part Size
CM 708-SK-0189 20" L x 20" W x 13 ½" D

Mega Snake® Air Separator

This auxiliary component attaches directly to the Mega Snake’s mounting rail to provide code compliant separation between high ampacity conductors. This separation system provides the spacing that will allow the full ampacity rating of cables in accordance with the NEC. Can be configured to the customer’s specific cable schedule.

Part Number Part Size Description
CM 801-AS-12-001 12" W - Mega Snake Top
CM 801-AS-12-002 12" W - Mega Snake Bottom
CM 801-AS-18-001 18" W - Mega Snake Top
CM 801-AS-18-002 18" W - Mega Snake Bottom

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC-GY)

Splice Kit

Splice kit maintains a continuous electrical and mechanical bond throughout the Mega Snake system.

Part Number Description
CM 801-SP-SS-316 Mega Snake Splice Kit (2 splice plates per kit)

FINISH: STAINLESS STEEL (SS)

Classified UL

Size Adapters

Transition from one size Mega Snake to another.

Part Number Part Size
CM 801-2-R6 2" x 12" to 2" x 18" or 2" x 12" to 2" x 24"
CM 801-2-R12 2" x 12" to 2" x 24"
CM 801-4-R6 4" x 12" to 4" x 18" or 4" x 18" to 4" x 24"
CM 801-4-R12 4" x 12" to 4" x 24"
CM 801-6-R6 6" x 12" to 6" x 18" or 6" x 18" to 6" x 24"
CM 801-6-R12 6" x 12" to 6" x 24"
CM 801-2/4-R 2" x 12" to 4" x 18" or 2" x 18" to 4" x 24"
CM 801-2/4-R12 2" x 12" to 4" x 24"
CM 801-4/6-R6 4" x 12" to 6" x 18" or 4" x 18" to 6" x 24"
CM 801-4/6-R12 4" x 12" to 6" x 24"
CM 801-2/6-R6 2" x 12" to 6" x 18" or 2" x 18" to 6" x 24"
CM 801-2/6-R12 2" x 12" to 6" x 24"

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

TEST: Snake Nuts Threaded Rod Fastener Accessory

Applications: Lorem ipsum…

Part Number Part Size
CM 708-SK-0546 - AC Power 24" L x 24" W x 12" D

Solar Panel Ice Guard

Part Number Part Size
CM 407-IG-10-PC-GY Solar Panel Ice Guard - 10 ft Section
CM 407-10-10953 Universal Mounting Bracket

Solar Straight Sections

Part Number Loading Dimensions Cable Capacity Cut Sheet BIM
CM 801-4-6-10 4" x 6" x 10' 250
CM 801-2-12-10 2" x 12" x 10' 220
CM 801-4-12-10 4" x 12" x 10' 440
CM 801-6-12-10 6" x 12" x 10' 670
CM 801-2-18-10 2" x 18" x 10' 375
CM 801-4-18-10 4" x 18" x 10' 750
CM 801-6-18-10 6" x 18" x 10' 1,100
CM 801-2-24-10 2" x 24" x 10' 490
CM 801-4-24-10 4" x 24" x 10' 980
CM 801-6-24-10 6" x 24" x 10' 1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-45 2" D x 6" W 45° Turn
CM 801-4-6-45 4" D x 6" W 45° Turn
CM 801-2-12-45 2" D x 12" W 45° Turn
CM 801-4-12-45 4" D x 12" W 45° Turn
CM 801-6-12-45 6" D x 12" W 45° Turn
CM 801-2-18-45 2" D x 18" W 45° Turn
CM 801-4-18-45 4" D x 18" W 45° Turn
CM 801-6-18-45 6" D x 18" W 45° Turn
CM 801-2-24-45 2" D x 24" W 45° Turn
CM 801-4-24-45 4" D x 24" W 45° Turn
CM 801-6-24-45 6" D x 24" W 45° Turn

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

90° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-90 2" D x 6" W 90° Turn
CM 801-4-6-90 4" D x 6" W 90° Turn
CM 801-2-12-90 2" D x 12" W 90° Turn
CM 801-4-12-90 4" D x 12" W 90° Turn
CM 801-6-12-90 6" D x 12" W 90° Turn
CM 801-2-18-90 2" D x 18" W 90° Turn
CM 801-4-18-90 4" D x 18" W 90° Turn
CM 801-6-18-90 6" D x 18" W 90° Turn
CM 801-2-24-90 2" D x 24" W 90° Turn
CM 801-4-24-90 4" D x 24" W 90° Turn
CM 801-6-24-90 6" D x 24" W 90° Turn

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

TEE Section

Part Number Part Size Description Cut Sheet BIM
CM 801-2-6-T 2" D x 6" W T-Section
CM 801-4-6-T 4" D x 6" W T-Section
CM 801-2-12-T 2" D x 12" W T-Section
CM 801-4-12-T 4" D x 12" W T-Section
CM 801-6-12-T 6" D x 12" W T-Section
CM 801-2-18-T 2" D x 18" W T-Section
CM 801-4-18-T 4" D x 18" W T-Section
CM 801-6-18-T 6" D x 18" W T-Section
CM 801-2-24-T 2" D x 24" W T-Section
CM 801-4-24-T 4" D x 24" W T-Section
CM 801-6-24-T 6" D x 24" W T-Section

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

Crossing Grid

Part Number Part Size Cut Sheet BIM
CM 801-2-6-CG 2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG 4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG 2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG 4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG 6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG 2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG 4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG 6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG 2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG 4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG 6" D x 24" W 4-Way Crossing Grid

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

Passive Optical Network Module for Under Desks

New under desk ONT mounting enclosure that can house most current ONTs on the market. This PON module will provide space for the service loop and the auxiliary power unit.

Part Number Part Size
CM 708-SK-0689 15.26" L x 7.66" W x 3.125” D

Triangle Wall Bracket

Part Number Cut Sheet
CM 610-653-XX-WBN

• Assembly Required
• Available in 6", 12", 18" and 24" tray width

XX DENOTES WIDTH OF TRAY

Fiber and Copper SCIF Secured Module

Applications: This secure box is designed to house sensitive connections under raised floors. Primarily used in SCIF and other secure venues, this box has a sliding removable cover with integrated padlock hasp. The unique design makes it impossible for entrance unless physically unlocked, keeping out all unwanted personnel. All seams are electronically welded for a completely enclosed and secure module.

Features:
• Lockable secure lid design with pad lock hasp
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Completely welded seams
• Available with or without knockouts
• Complete with built-in cable management and fiber cassette mounting structure
• 110 block mounting positions
• Custom configurations are available

Part Number Part Size
CM 708-SK-0148 21" L x 14" W x 6" D

Concrete Anchor for 501 Series Wall Snake

Stud type anchor design allows easy through-type fastenings and can be set in bottomless hole. Pre-assembled anchor ensures easy and fast installation. Anchor size is same as drill bit size for easy installation. Comprehensive testing to ensure high performance in block, masonry and concrete base materials. Special design prevents the anchors from spinning in the hole. Anchor won’t drop out while setting overhead.

Part Number Description
CM 501-CA

Reprinted from information and permission received from the Hilti company

Snake X NEMA 4X Enclosures

SnakeX Enclosure Systems provide superior protection in harsh indoor and outdoor environments for electrical and electronic equipment. Meeting NEMA 4X specifications ensures protection against corrosion, hose-directed water, splashing, rain and ice.

Features:
• Enclosures can be wall or floor mounted
• Hinge or lift off cover
• Continuous hinge (removable hinge pin)
• Wallmounting flange / foot
• Watertight gasket
• Stainless steel clamps and screws
• Four #10-32 weld nuts for optional mounting pan
• Grounding studs on inside of box and cover
• Captive clamp screws
• Stainless steel mounting panels
• Terminal blocks or other component assembly
• Quick release latches
• Custom sizes
• Stainless steel breather / drain
• NEMA Type 3, 3R, 4, 4X, 12, and 13
• UL50
• cULus Listed
• 14 gauge / Type 304 or 316 stainless steel
• Stainless steel hardware

Part Number Description
CM 708-440-11523 14GA / INSIDE DIM 10 x 8 x 4/ 6.00, 11.00 M1, M2 / 4.00 CLAMPS A

For a complete part number list download Snake X NEMA 4X Enclosures Systems.pdf

Retaining Post Kit

Part Number
CM 610-4-CRFP
CM 610-6-CRFP

Ceiling Support Bracket

Part Number Description
CM 610-CSK-38 ⅜" threaded rod
CM 610-CSK-50 ½" threaded rod

• Sold individually
• For mounting threaded rod to flat overhead or ceiling surface
• Mounting hardware not included

Vertical Support Foot Kit

Part Number
CM 610-X-VS

Vertical Wall Bracket

Part Number
CM 610-VWB

Snake-Loc String Cable Hanger

Quickly top load the PV cables directly into this light weight double pocket hanger with a squeeze lock feature that quickly attaches onto the messenger wire to secure the string cables.  Significantly reduces time and labor by requiring no tools. Hanger stays in place on the messenger wire.

Part Number
CM 407-SK-0974

String and Feeder Cable Hanger

As utility grade systems grow in size so does the size of string cables. Utilize Snake Tray’s tree hanger with a capacity of up to a quantity of 16, 750 Kcmil cables per hanger. Ideal for larger scale projects and can even be stacked to create a modular system to further increase capacity.  The side loading feature offers quick access to installing and maintaining cables for reduced labor costs. No trenching for minimal ground disturbance. The large capacity loops will handle any size of cable bundle easily and effectively.

Part Number
CM 407-SK-0975

Torque Tube Cable Hanger

Tube hangers point in the right direction and are designed with innovative features that provide a dual round section to manage cable as trackers move daily up to 67 degrees following the sun from east to west. Our hangers can be custom designed to fit any style of fixed tilt or tracker for a secure fit over any style torque tube or fixed tilt structure.

Part Number
CM 407-SK-0972

4″ Solar Cable Hanger

Quick snap on torque tube hanger with single pocket for managing cables. Available in powder coat and stainless steel.

Part Number Description
CM 407-SK-1069 For 4" Square Tube, Gray
CM 407-SK-1069-SS For 4" Square Tube, Stainless Steel

Solar Click-n-Go Cable Hanger – Double

One Cable Hanger That Manages All the Cables For Endless Possibilities Over Any Terrain!
Snake Tray’s new cable hanger designed with double cavities offers endless possibilities to manage cables up to 1250 Kcmil over a variety of terrain. Constructed of lightweight, eco-friendly rugged polycarbonate and ergonomically designed, the hanger installs quickly to reduce time and labor costs by 50% by doing the job of multiple hangers. Move all your East/West cables with one cable hanger!

• Accommodates any size cable up to 1250 Kcmil
• Holds up to 300 Lbs.
• Ultra-narrow profile, light weight and corrosion free
• Easy and fast installation reduces labor costs
• Safe installation through special click closure system
• Lightweight, eco-friendly, rugged polycarbonate construction with up to 30 years of UV protection
• Exceptional reliability in extreme weather conditions
• Compliments the Solar Snake Max XL system by feeding the cables East/West

Part Number Description
CM 407-PSS-3-1250 Double Cavity Cable Hanger - Messenger Wire Mount

Solar Click-n-Go Cable Hanger – Single

Snake Tray® Solar Click-n-Go Cable Hanger is deceivingly simple in appearance, but actually is an integrated cable routing system for two 500 Kcmil cables, one ground cable and a ¼” messenger wire.A lower profile than alternative products, Solar Click-n-Go Cable Hanger reduces the chance of damage to the conductors and provides for a generous maximum load weight of 65 lbs. The unique design is suitable for services carrying #10 string wires but also strong enough for more heavy-duty cables. Holding up to two 500 Kcmil cables with no need to de-rate.

• Accommodates two 500 Kcmil cables
• Holds up to 65 lbs.
• Ultra-narrow profile, light weight and corrosion free
• Easy and fast installation reduces labor costs
• Safe installation through special click closure system
• Lightweight, eco-friendly, rugged polycarbonate construction with up to 30 years of UV protection
• Exceptional reliability in extreme weather conditions
• Compliments the Solar Snake Max XL system by feeding the cables East/West

Part Number Description
CM 407-PSS-2-500 Single Cavity Cable Hanger - Messenger Wire Mount

Moveable Cross Member

Part Number
CM 610-MCM-X

X DENOTES WIDTH OF TRAY

Snake Hook

Snake hook for mounting to any type of purlin hook specifically designed to mount onto hand bendable Solar Snake Tray in seconds. Ideal for car parks and ground mount installations.

Part Number Description
STSN 38 Fits 3/8"-16 Threaded Rod
STSN 12 Fits ½"-13 Threaded Rod
STSN 58 Fits 5/8"-11 Threaded Rod

Straight Sections

Part Number Loading Dimensions Cable Capacity Cut Sheet BIM
CM 801-2-6-10 2" x 6" x 10' 125
CM 801-4-6-10 4" x 6" x 10' 250
CM 801-6-6-10 6" x 6" x 10' 375
CM 801-2-8-10 2" x 8" x 10' 165
CM 801-4-8-10 4" x 8" x 10' 330
CM 801-6-8-10 6" x 8" x 10' 490
CM 801-2-12-10 2" x 12" x 10' 250
CM 801-4-12-10 4" x 12" x 10' 490
CM 801-6-12-10 6" x 12" x 10' 735
CM 801-2-18-10 2" x 18" x 10' 375
CM 801-4-18-10 4" x 18" x 10' 735
CM 801-6-18-10 6" x 18" x 10' 1,100
CM 801-2-24-10 2" x 24" x 10' 490
CM 801-4-24-10 4" x 24" x 10' 980
CM 801-6-24-10 6" x 24" x 10' 1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL FOR CENTER HANGING OPTIONS.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

30° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-30 2" D x 6" W 30° Turn
CM 801-4-6-30 4" D x 6" W 30° Turn
CM 801-2-12-30 * 2" D x 12" W 30° Turn
CM 801-4-12-30* 4" D x 12" W 30° Turn
CM 801-6-12-30 * 6" D x 12" W 30° Turn
CM 801-2-18-30 2" D x 18" W 30° Turn
CM 801-4-18-30 4" D x 18" W 30° Turn
CM 801-6-18-30 6" D x 18" W 30° Turn
CM 801-2-24-30 2" D x 24" W 30° Turn
CM 801-4-24-30 4" D x 24" W 30° Turn
CM 801-6-24-30 6" D x 24" W 30° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-45 2" D x 6" W 45° Turn
CM 801-4-6-45 4" D x 6" W 45° Turn
CM 801-2-12-45 * 2" D x 12" W 45° Turn
CM 801-4-12-45 * 4" D x 12" W 45° Turn
CM 801-6-12-45 * 6" D x 12" W 45° Turn
CM 801-2-18-45 2" D x 18" W 45° Turn
CM 801-4-18-45 4" D x 18" W 45° Turn
CM 801-6-18-45 6" D x 18" W 45° Turn
CM 801-2-24-45 2" D x 24" W 45° Turn
CM 801-4-24-45 4" D x 24" W 45° Turn
CM 801-6-24-45 6" D x 24" W 45° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

90° Turns

Part Number Part Size Cut Sheet BIM
CM 801-2-6-90 2" D x 6" W 90° Turn
CM 801-4-6-90 4" D x 6" W 90° Turn
CM 801-2-12-90 * 2" D x 12" W 90° Turn
CM 801-4-12-90 * 4" D x 12" W 90° Turn
CM 801-6-12-90 * 6" D x 12" W 90° Turn
CM 801-2-18-90 2" D x 18" W 90° Turn
CM 801-4-18-90 4" D x 18" W 90° Turn
CM 801-6-18-90 6" D x 18" W 90° Turn
CM 801-2-24-90 2" D x 24" W 90° Turn
CM 801-4-24-90 4" D x 24" W 90° Turn
CM 801-6-24-90 6" D x 24" W 90° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC).

TEE Section

Part Number Part Size Cut Sheet BIM
CM 801-2-6-T 2" D x 6" W TEE Section
CM 801-4-6-T 4" D x 6" W TEE Section
CM 801-2-12-T * 2" D x 12" W TEE Section
CM 801-4-12-T * 4" D x 12" W TEE Section
CM 801-6-12-T * 6" D x 12" W TEE Section
CM 801-2-18-T 2" D x 18" W TEE Section
CM 801-4-18-T 4" D x 18" W TEE Section
CM 801-6-18-T 6" D x 18" W TEE Section
CM 801-2-24-T 2" D x 24" W TEE Section
CM 801-4-24-T 4" D x 24" W TEE Section
CM 801-6-24-T 6" D x 24" W TEE Section

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

Crossing Grid

Part Number Part Size Cut Sheet BIM
CM 801-2-6-CG 2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG 4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG * 2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG * 4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG * 6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG 2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG 4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG 6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG 2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG 4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG 6" D x 24" W 4-Way Crossing Grid

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

Consolidation Box

Snake Tray offers several styles of floor boxes that can be used under raised access floors. Raised floor enclosures are placed under or in a single 2′ x 2′ floor tile and come with an integrated cover. Snake Tray also offers various MUTOA style floor boxes for the workspace.

Features:
• Lockable secure lid design available
• Snake Bus compatible
• Built in cable management
• Brackets (included with most models) for attachment to raised floor support pedestals
• Multiple styles to suit your equipment mounting needs
• UL Listed
