407 Series Solar Snake Tray Components

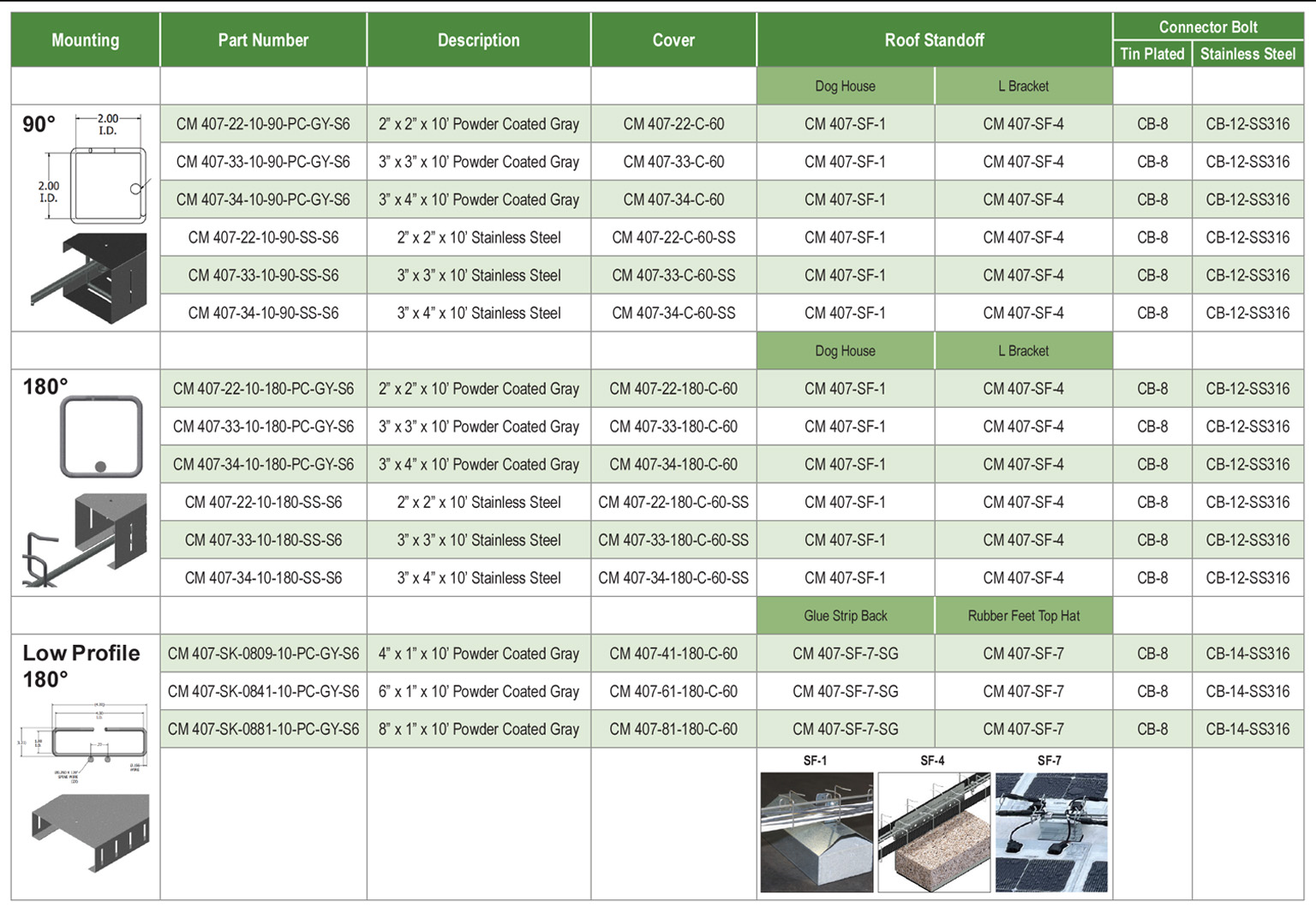

| Drawing | Part Number | Physical Dimensions | Loading Dimensions |
|---|---|---|---|
|
CM 407-22-10-90-PC-GY-S6 | 2" x 2" x 10' | Powder Coated Gray with 90° mount |
|
|
CM 407-22-10-90-SS-S6 | 2" x 2" x 10' | Stainless Steel with 90° mount |
|
CM 407-22-10-180-PC-GY-S6 | 2" x 2" x 10' | Powder Coated Gray with 180° mount |
|
|
CM 407-22-10-180-SS-S6 | 2" x 2" x 10' | Stainless Steel with 180° mount |
|
CM 407-33-10-90-PC-GY-S6 | 3" x 3" x 10' | Powder Coated Gray with 90° mount |
|
|
CM 407-33-10-90-SS-S6 | 3" x 3" x 10' | Stainless Steel with 90° mount |
|
CM 407-33-10-180-PC-GY-S6 | 3" x 3" x 10' | Powder Coated Gray with 180° mount |
|
|
CM 407-33-10-180-SS-S6 | 3" x 3" x 10' | Stainless Steel with 180° mount |
|
CM 407-34-10-90-PC-GY-S6 | 3" x 4" x 10’ | Powder Coated Gray with 90° mount |
|
|
CM 407-34-10-90-SS-S6 | 3" x 4" x 10’ | Stainless Steel with 90° mount |
|
CM 407-34-10-180-PC-GY-S6 | 4" x 3" x 10’ | Powder Coated Gray with 180° mount |
|
|
CM 407-34-10-180-SS-S6 | 4" x 3" x 10’ | Stainless Steel with 180° mount |
FOR BEST RESULTS IT IS RECOMMENDED THAT SNAKE TRAY BE SUPPORTED EVERY FOUR (4) TO FIVE (5) FEET
