Snake Bus®
Floor Riser Snake Bus Track
The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.
| Part Number | Description |
|---|---|
| CM 707-FR-4 | Floor Riser for 4ft. Snake Bus Track |
| CM 707-FR-8 | Floor Riser for 8ft. Snake Bus Track |
Floor Riser for Feed Module
The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.
| Part Number |
|---|
| CM 707-FR-FM |

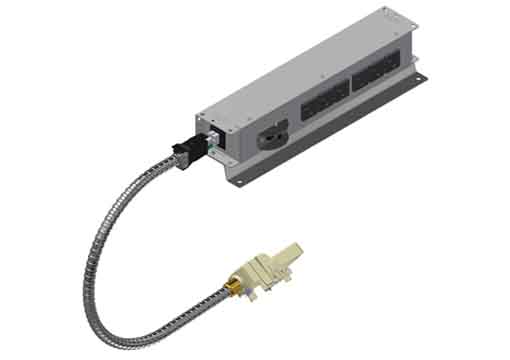

Under Desk Power Module
Applications:
Power module mounts under the work surface. The electrical whip feeds through Snake Air pass through air flow manager in an access floor.
Features:
• Designed to customer specific needs to work with the CM 707 Snake Bus Power Distribution System
• Installs without the need of any fasteners.
• Complete with built-in circuit breaker and Indicator light
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
| Part Number | Part Size |
|---|---|
| CM707-20-1-24-26-20-2-005-0000 | 15 ¾" L x 3 ¾" W x 2 ¾" D |
Snake Whip Horizontal Rack Mount One Rack Unit
Applications:
These industrial quality rack mount Power Distribution Units (PDU) are built in a wide variety of configurations. Snake Air pass through air flow manager in an access floor.
Features:
• Part of CM 707 Snake Bus Power Distribution System
• 1 RU
• Six NEMA 15 AMP or 20 AMP receptacles
• Circuit breakers protected
• Indicator lights
• Black powder coat
| Part Number | Part Size |
|---|---|
| CM 707-SWHRM-01 | 18" L x 1 ¾" W x 3 ½" D |
Recessed Data Center Floor Power Reception Point
Applications:
This custom designed unit for our data center customer allows for separate A and B channels of power while keeping airflow segregated under the floor.
Features:
• Accessory for the 707 Snake Bus Power Distribution System
• Individual compartmented 3-Phase protected circuits
• Installed into raised access floors
• Redundant power capabilities
• Two NEMA 530R receptacle, 30 AMP
• Additional configurations available
| Part Number | Part Size |
|---|---|
| CM707-30-A-10-28-4-2-024-0029 | 17" L x 3 ½" W x 7" D |
Snake Bus Recessed Floor Box with 3 Independent Protected Circuits
Features:
• Designed to customer requirements with up to 3 independent circuits and 12 keystone receptacles for data
• Designed to work in conjunction with 707 Series Snake Bus Power Distribution
• Two separate compartments for data and power
• Steel cover with 2-cable access points and recessed lid will accept carpet
| Part Number | Part Size |
|---|---|
| CM 707-20-A-25-04-20-3-005-0018 | 13" L x 9" W x 5 ½" D |
SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT OUR SPECIFIC REQUIREMENTS
Circular Data & Power Reception Module for Access Floors
Snake Tray’s new all metal circular floor box for access floors offers a durable data and power reception module for workstations. Its optional integrated circuit breaker eliminates nuisance power interruptions to the rest of the office. Models are available with standard or custom configurations to meet the customer’s specifications. Available in powder coated or anodized finishes to coordinate with any architectural design.
Features:
• All metal design gives this floor box durability to last a life time
• Circular design allows for the module to be installed in the same size opening as standard air diffusers
• Two compartment all metal construction for both power and/or data connections
• Standard and custom electrical and data configurations available
• Optional current overload protection
• Available in powder coated or anodized finishes to coordinate with the architectural design of the building
• Made in the USA and 100% compliant with the Buy America Act
| Part Number | Part Size |
|---|---|
| CM 708-78-11568 | 10" OD x 5" D |
Consolidation Box
Snake Tray offers several styles of floor boxes that can be used under raised access floors. Raised floor enclosures are placed under or in a single 2′ x 2′ floor tile and come with an integrated cover. Snake Tray also offers various MUTOA style floor boxes for the workspace.
Features:
• Lockable secure lid design available
• Snake Bus compatible
• Built in cable management
• Brackets (included with most models) for attachment to raised floor support pedestals
• Multiple styles to suit your equipment mounting needs
• UL Listed
